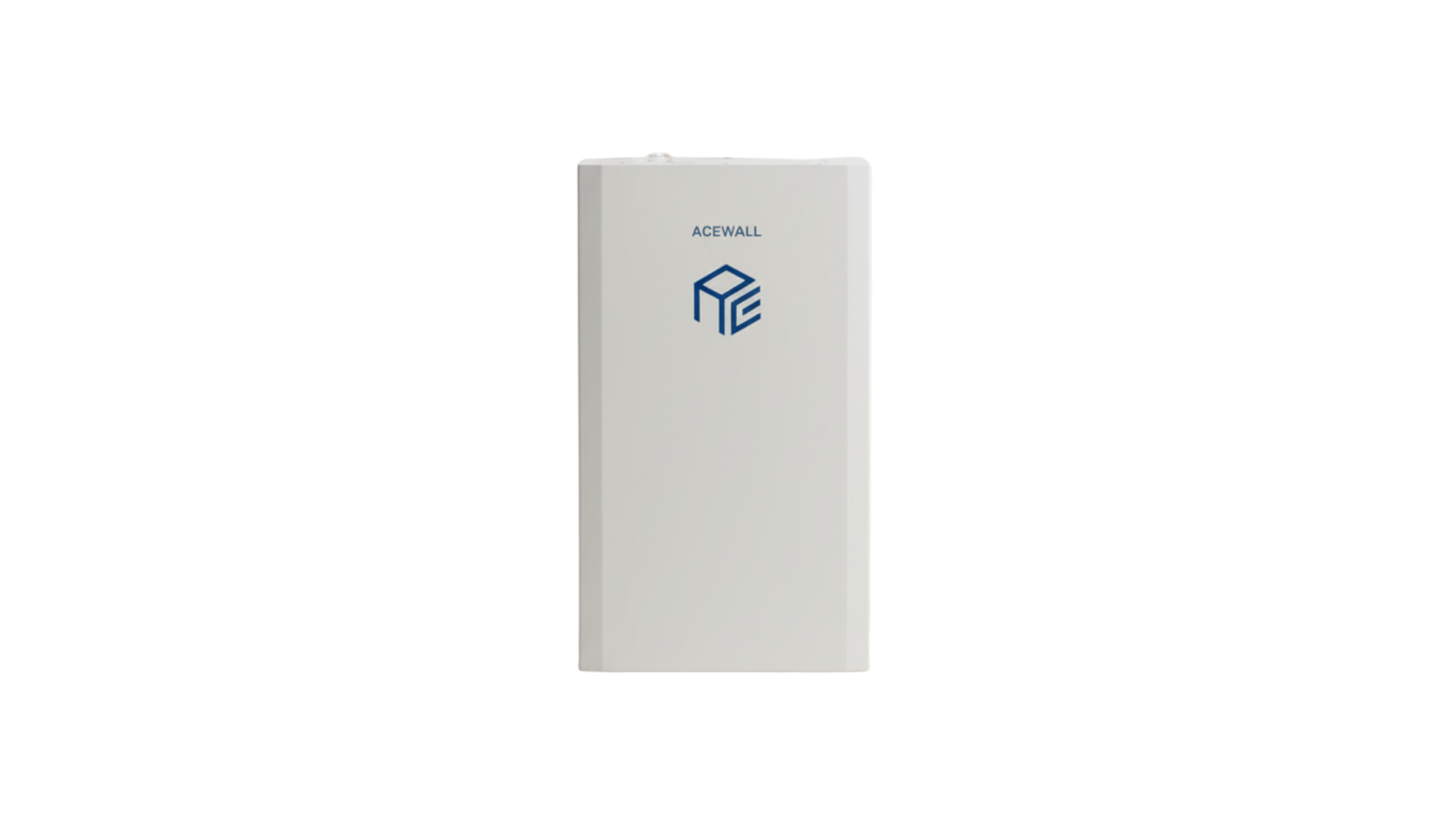

ACEWALL - 48V5 5KWh Graphene Battery Hybrid
Energy Storage: 5 KWh
98 Amp Hours
Recommended Depth of Discharge 90%
Self Discharge Rate 2% per Month
RTE 97.5% (Round Trip Efficiency)
Cooling method : Natural Cooling
Weight : 99.2 Lbs.
Projected Cycle Life ( 25℃) 20,000 times
Can operate with the grid or off-grid mode
ACEWALL-48V 10KWh Graphene battery Hybrid
Energy Storage: 10 KWh
196 Amp Hours
Recommended Depth of Discharge 90%
Self-Discharge Rate 2% per Month
RET 97.5% (Round Trip Efficiency)
Mounting Options: Wall/Floor
Weight: 257.9 Lbs.
Projected Cycle Life (25℃) 20,000 times
Can operate with the grid or off-grid mode
ACEWALL-48V 15KWh Graphene battery Hybrid
Energy Storage: 15 KWh
294 Amp Hours
Recommended Depth of Discharge 98%
Self-Discharge Rate 2% per Month
RET 97.5% (Round Trip Efficiency)
Mounting Options: Wall/Floor
Cooling Method: Natural Cooling
Weight: 291 Lbs.
Projected Cycle Life ( 25℃) 20,000 times
Can operate with the grid or off-grid mode
ACE Advance Energy Storage 48V 10KWH -Graphene
Highly Efficient: > 95% RTE (Round Trip Efficiency)
DoD up to 100%
208 Amp Hours
Feature-rich Online Monitoring via En Connect Software or OLED Display
Highly Efficient: > 95% RTE (Round Trip Efficiency
Operating Temperature Range -22F - +156F
Wide Operating Temperature Range
Deployable in Various Environments including High Altitudes
No Thermal Runaway Risk
Projected Cycle Life (25℃) 36,500 times
Can operate with the grid or off-grid mode
ACE- 10KWh Hybrid Graphene Energy Storage
- Energy Storage 10KWH
- Solid state energy storage
- 200 Amp Hours
- Long cycle life: 20,000 times
- Recommended Depth of Discharge up to 90%
- Safest technology – No Heat
- Max Continuous Charge Current 100Amps
- High discharge current 100 Amps
- Low self-discharge 2% month
- Low maintenance
- Environment friendly
- Can operate with the grid or off-grid mode
ACE -Pack Containerized Energy Storage
ACE Group Microgrid Solution: 240KWh
Using 100% Hybrid Graphene Energy Storage Modules
Solid state battery
- Long cycle life
- Millisecond level response speed of BESS controller, Multiple ESS control functionalities.
- Compatible communication interface with battery management system (BMS).
- Proprietary versatile control algorithms and logics.
- Hundreds of communication protocols are supported.
- Work with different renewable energy for smoothing the power generation.
- Anti-islanding operation.
- The other functions required by grid requirement.
745V 52 KWH Hybrid Graphene Energy Storage
Fast Charging Hybrid Graphene Battery System, large power, extreme working temperature, smart management system, safest technology, suitable for electric automobile charge station, UPS, telecom tower back up power supply, peak shaving, grid frequency & voltage stabilization and demand reduction
- Hybrid Graphene Energy Storage
- 50,000 Cycles
- Recommended Depth of Discharge 90%
- Maximum Charge Voltage 858 V/DC
- Max. Charge Current 210 Amps
- Max. discharge current 210 Amps
- 2% per month self-discharge
- Natural Cooling

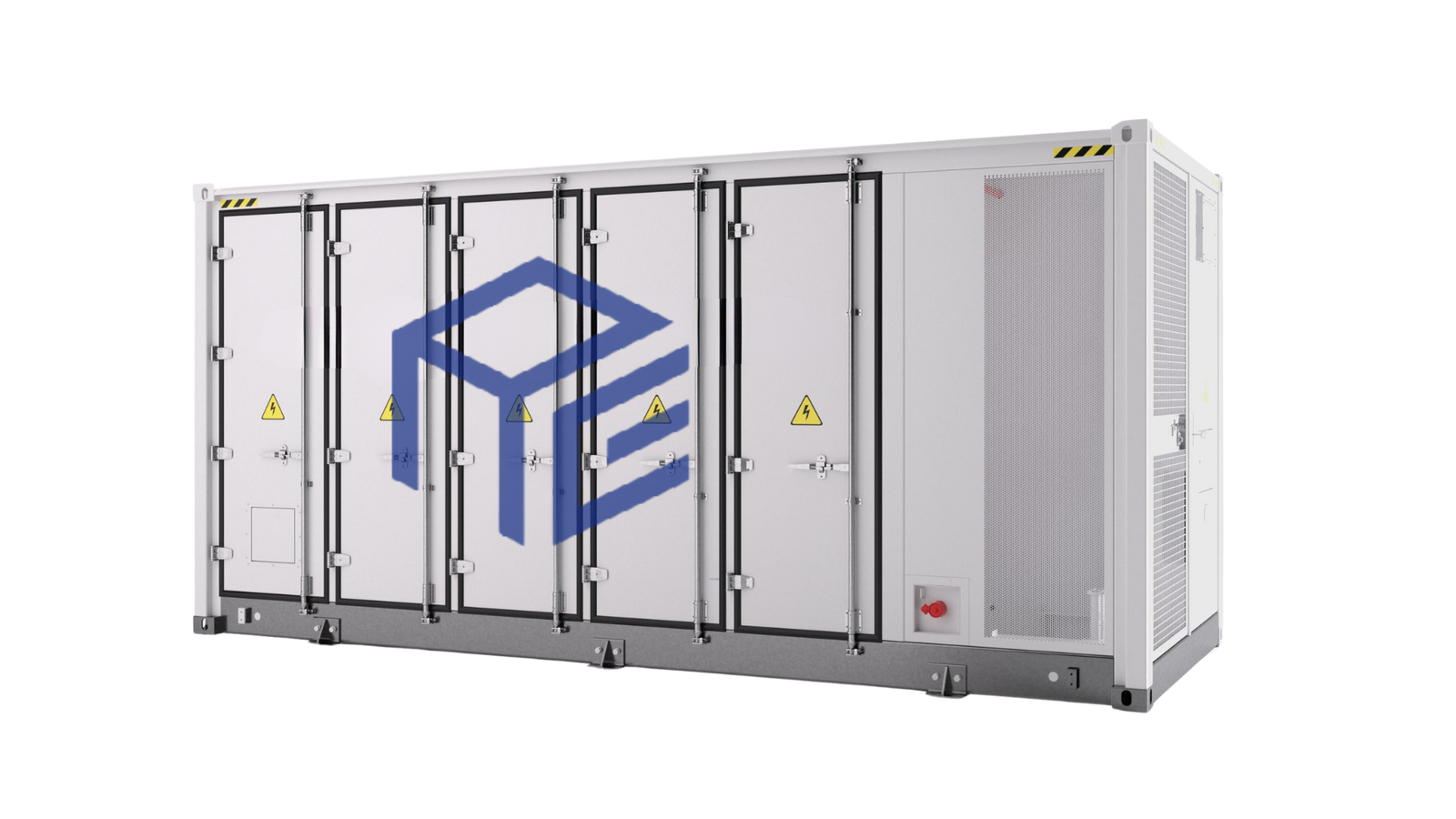

ACE-PACK
Large Containerized Energy Storage Solution 1280V 2.5MWh/1.25MW-C
- Long cycle lifetime
- Millisecond level response speed of BESS controller, Multiple ESS control functionalities.
- Compatible communication interface with battery management system (BMS).
- Proprietary versatile control algorithms and logics.
- Hundreds of communication protocols are supported.
- Work with different renewable energy sources for smoothing the power generation.
- Anti-islanding operation.
- The other functions required by grid requirement.
- Purchasing low-cost off-peak energy and selling it during periods of high prices.
- Provide reliable capacity to meet peak system demand.
- Very fast response to unpredictable variations in demand and generation.
- Fast response to random, unpredictable variations in demand and generation.
